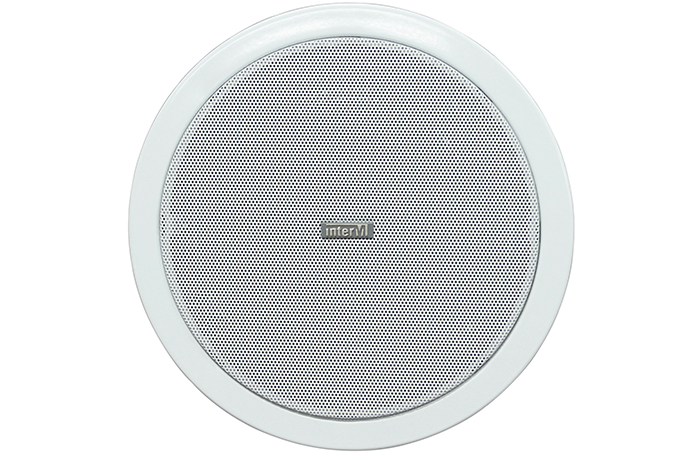

| Model | CS-610 |
| Type | 6.5" Full-range
Ceiling Speaker |
| Driver | 6.5" |
| Power Handling(AES) | 10W |
| Input Power | 100V | 10/5/3W |
| 70V | - |
| Impedance | 100V | 1k/2k/3.3kΩ |
| 70V | - |
| LOW | - |
| Power Selection | By Wiring |
| Frequency Response(-10dB) | 300Hz ~ 15.4kHz |
| Frequency Range(-20%) | 100Hz ~ 17.4kHz |
| Sensitivity (1W/1m, 1kHz) | 90dB |
| Maximum SPL[Cont] | 100dB |
| Nominal Dispersion(Conical) | 1kHz | 167˚ |
| 4kHz | 56˚ |
| Input connection | Bi-Wired |
| Enclosure Material | HIPS (HB) |
| Enclosure Color(Front) | Light Gray |
| Grille Material | Metal Grille |
| Grille Color | IVORY |
| Cut-Out Diameter(Ø, mm) | Ø195 ~ 200 |
| Weight (Net) | 870g |
| Dimensions (Ø(WxH)xD, mm) | Ø228 x 116 |
| Weather Resistant | - |
| Flame resistant | - |
| Certification | - |
| Included Accessories | - |
